TX04KSS/60S44/EPS

COD. TX04KSS/60S44/EPS

Power: 4.000W

TX04KSS/60S44/EPS

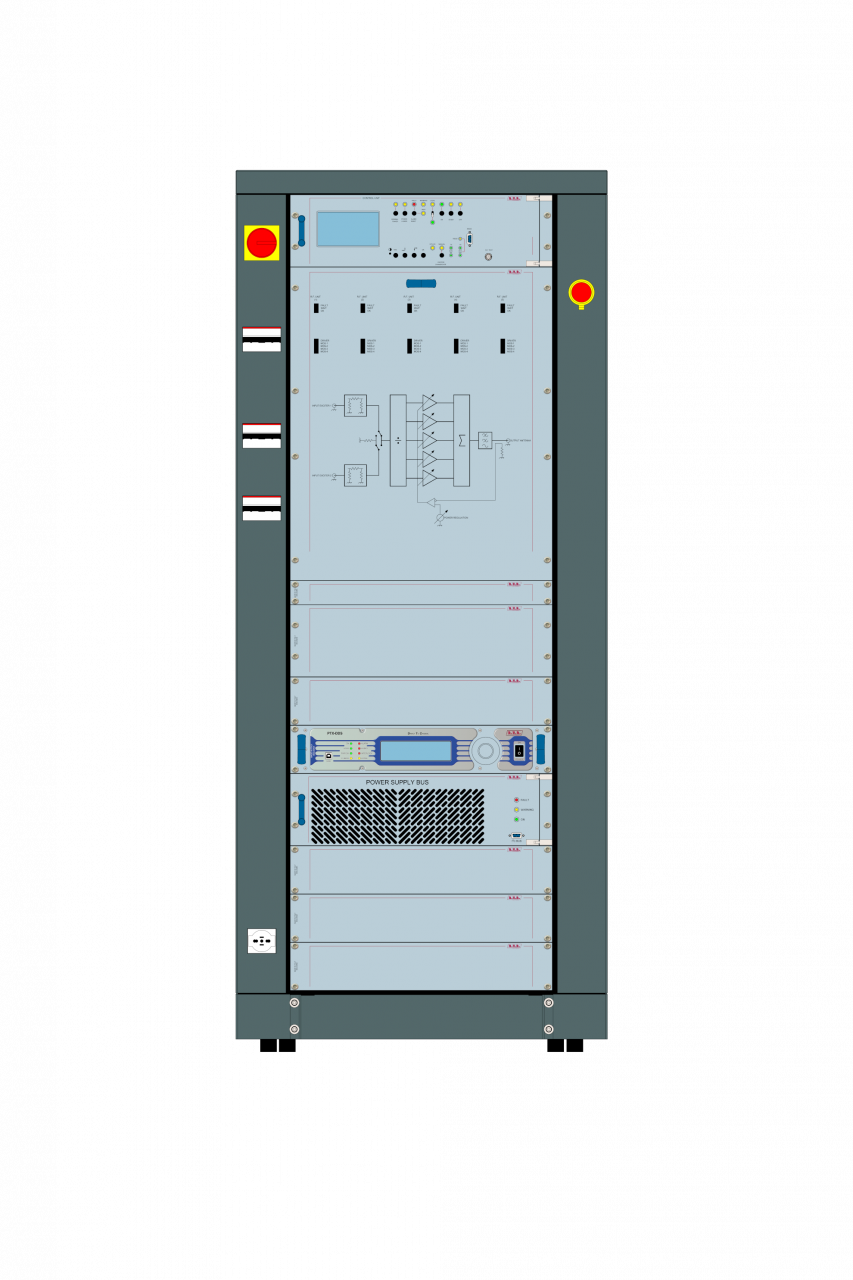

Plug-in next gen transmitter, 4kW (composed of PJ4KPS-CA + PTX30DDS).

TX04KSS/60S44/EPS
Parameter Value
GENERALS
RF Output Power 4kW + 10%
Frequency Range 87,5 – 108 MHz
Driver power for rated output 30W
VSWR 1.4:1 with automatic fold-back at higher VSWR
Asynchronous AM S/N Ratio Typically >70dB
Synchronous AM S/N Ratio Typically > 55dB
Harmonics suppression and Spurious Typically < 85dB
RF Harmonics Exceeds ETSI/CCIR/FCC requirements
RF Spurious Exceeds ETSI/CCIR/FCC requirements
Environmental working conditions -10 °C to + 50 °C / 95% relative Humidity non condensing
POWER REQUIREMENTS
AC Power Input AC Supply Voltage 400V ±10% AC Three-Phase 3F+N
230V ±10% AC Three-Phase 3F+N
230V ±10% AC Mono-Phase 50/60 Hz
Active Power Consuption about 5.600W
Power factor > 0.95
Overall Efficiency 71/73 %
Connector Terminal Block Standard
MECHANICAL DIMENSIONS
Phisical Dimensions L x H x W 40u: 685 mm x 1935 mm x 1000 mm   32u: 685 mm x 1620 mm x 1000 mm
Weight about 240 kg
Cooling Forced, with internal fan
Acoustic Noise < 75 dBA
OUTPUTS
RF Output 50 Ohm (7/8 or 1+5/8 EIA flange type)



ORDERING INFORMATION

  • TX04KSS/60S44/EPS
    Plug-in next gen transmitter, 4kW (composed of PJ4KPS-CA + PTX30DDS).

OPTIONS

  • /N+1 PSL
    OPT. An additional power supply can be turned on so in the event of a power supply failure there will be no reduction in power
