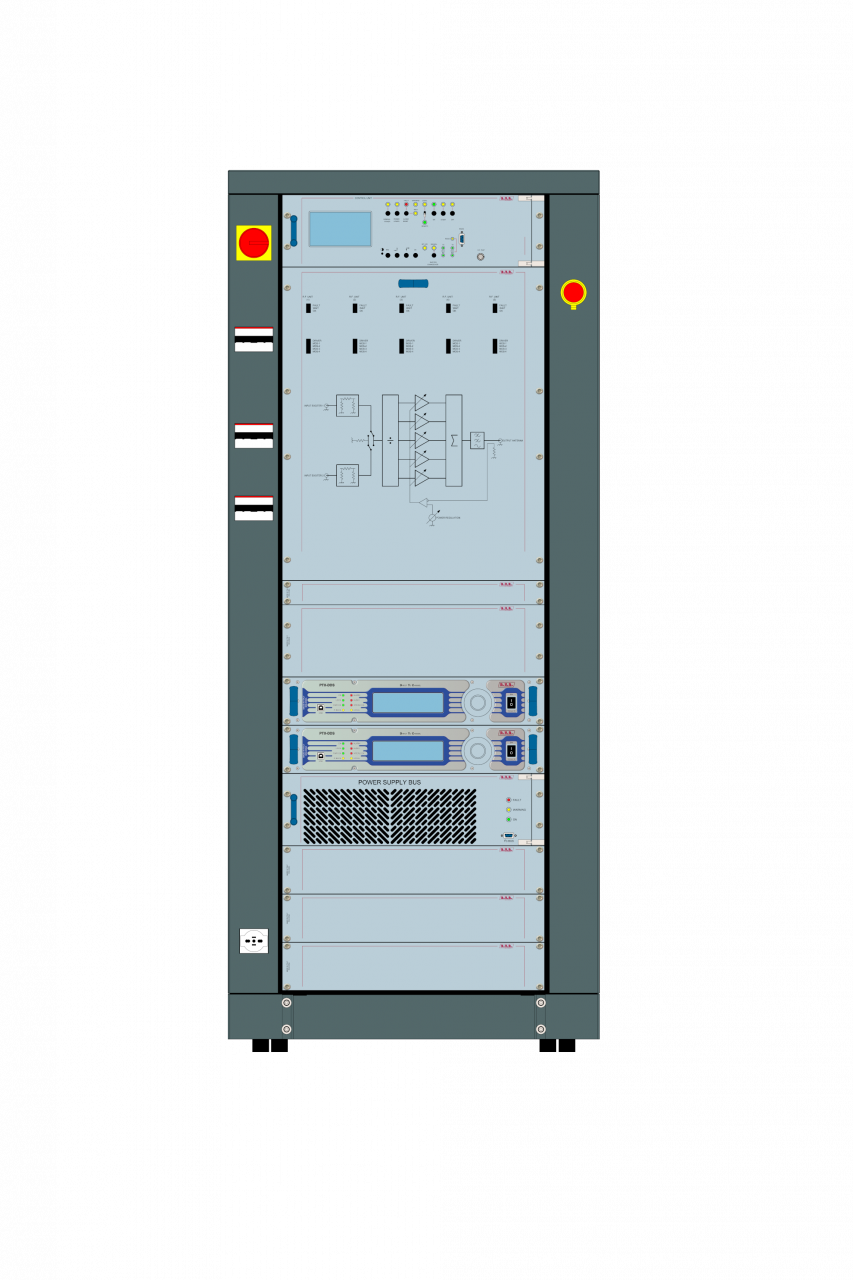

TX04KSS/60D44/EPS
|
|
Parameter
|
|
Value
|
|
GENERALS
|
|
RF Output Power
|
|
4kW
+ 10%
|
|
Frequency Range
|
|
87,5
– 108 MHz
|
|
Driver power for rated output
|
|
30W
|
|
VSWR
|
|
1.4:1 with automatic fold-back at higher VSWR
|
|
Asynchronous AM S/N Ratio
|
|
Typically
>70dB
|
|
Synchronous AM S/N Ratio
|
|
Typically
> 55dB
|
|
Harmonics
suppression and Spurious
|
|
Typically
< 85dB
|
|
RF Harmonics
|
|
Exceeds ETSI/CCIR/FCC requirements
|
|
RF Spurious
|
|
Exceeds ETSI/CCIR/FCC requirements
|
|
Environmental working conditions
|
|
-10 °C to + 50 °C / 95% relative Humidity non
condensing
|
|
POWER REQUIREMENTS
|
|
AC Power Input
|
AC Supply Voltage
|
400V ±10% AC Three-Phase 3F+N
|
|
230V ±10% AC Three-Phase 3F+N
|
|
230V ±10% AC Mono-Phase 50/60 Hz
|
|
Active
Power Consuption
|
about 5.600W
|
|
Power
factor
|
>
0.95
|
|
Overall
Efficiency
|
71/73
%
|
|
Connector
|
Terminal
Block Standard
|
|
MECHANICAL DIMENSIONS
|
|
Phisical Dimensions
|
L x H x W
|
40u: 685 mm x 1935 mm x 1000 mm
32u: 685 mm x 1620 mm x 1000 mm
|
|
Weight
|
|
about
240 kg
|
|
Cooling
|
|
Forced,
with internal fan
|
|
Acoustic
Noise
|
|
<
75 dBA
|
|
OUTPUTS
|
|
RF Output
|
|
50 Ohm (7/8 or 1+5/8
EIA flange type)
|
